How to Design Ventilated Sheet Metal Enclosures for Industrial Electronics

When designing a ventilated sheet metal enclosure, start with the electronics’ heat dissipation, the highest expected ambient temperature, and the required dust and water protection. Natural convection may be enough for low, evenly distributed heat; dense or high-load layouts often need filtered forced airflow. In either case, plan a clear low-to-high air path and validate the finished assembly under representative operating conditions.

The design balances heat transfer, environmental protection, and practical cutting, bending, coating, and assembly.

What Is a Ventilated Sheet Metal Enclosure?

A ventilated enclosure is a protective housing with openings or air-moving components designed to transfer heat away from electrical or electronic parts. It must keep components within their operating conditions while managing dust, moisture, access, wiring, and structural needs.

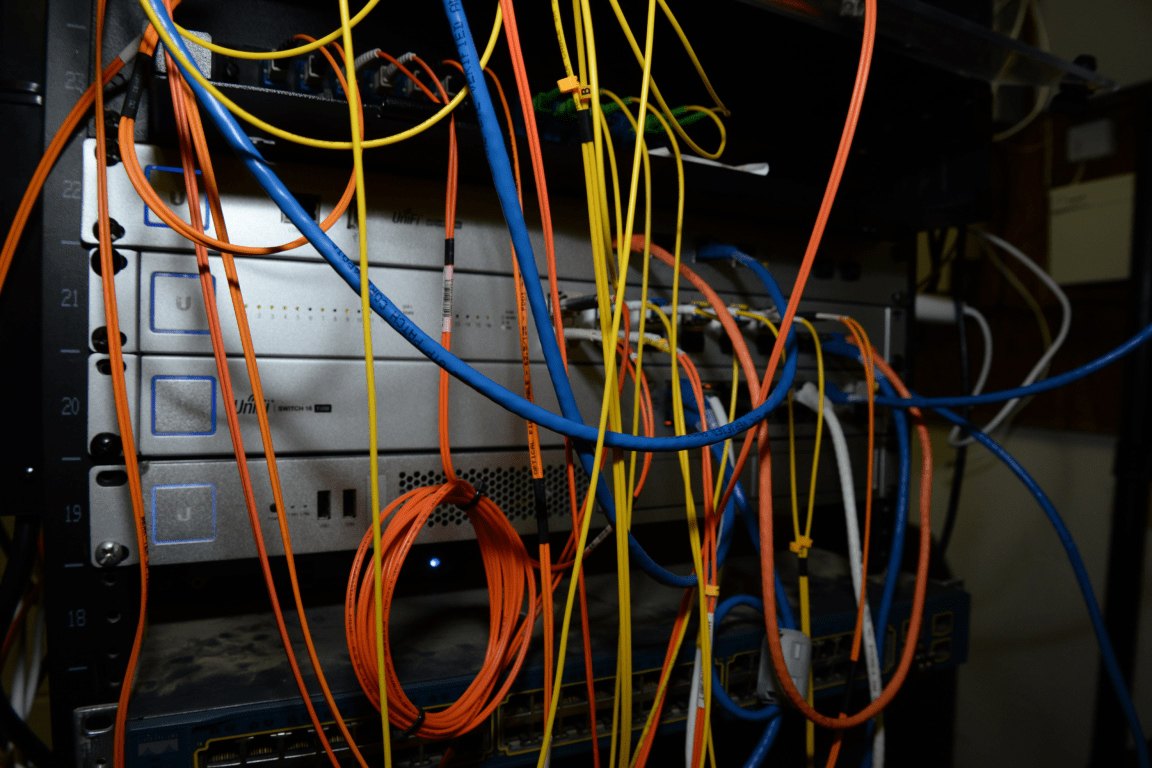

Before selecting a vent, collect four inputs: internal heat dissipation, maximum ambient temperature, permitted component temperature rise, and the surrounding environment. Map heat sources and obstructions: a power supply can warm air before it reaches a controller, while tightly packed equipment can block a path that appears open on the exterior drawing.

For custom housings, coordinate these needs with sheet metal enclosure design early. Vent patterns affect panel stiffness, internal clearances, mounting positions, and finishing. Reserving these zones early simplifies manufacturing and assembly.

How Do You Choose Airflow and Protection Strategy?

Choose cooling based on the required airflow and the consequences of opening the enclosure to the environment. Natural convection has fewer components and no fan power, but it depends on heat level, orientation, spacing, and an unobstructed vertical path. Fan-assisted cooling moves more air through a compact housing, but adds a fan, filter, wiring, and another component whose operating condition must be checked over the product’s use.

A first airflow estimate can help compare concepts:

Q = P / (ρ × Cp × ΔT)

Here, Q is airflow in cubic meters per second, P is heat dissipated in watts, ρ is air density in kilograms per cubic meter, Cp is air’s specific heat in joules per kilogram-kelvin, and ΔT is the permitted air-temperature rise in kelvins. For an illustrative 200 W heat load, air density of 1.2 kg/m³, Cp of 1,005 J/(kg·K), and a 10 K rise, the estimate is about 0.0166 m³/s, or 60 m³/h. This is a starting estimate; real layouts add resistance, bypass flow, and uneven temperatures, so test the assembled configuration.

Place intake low and exhaust high where the equipment layout allows, then check that warm air does not recirculate into the inlet. Louvers, filters, and gaskets affect ingress protection. Do not assume a component’s rating transfers to the completed enclosure: openings, seams, fasteners, cable entries, and the installed filter all form part of the system. Align the airflow concept with the intended enclosure application and test the assembled design against its actual environmental requirement.

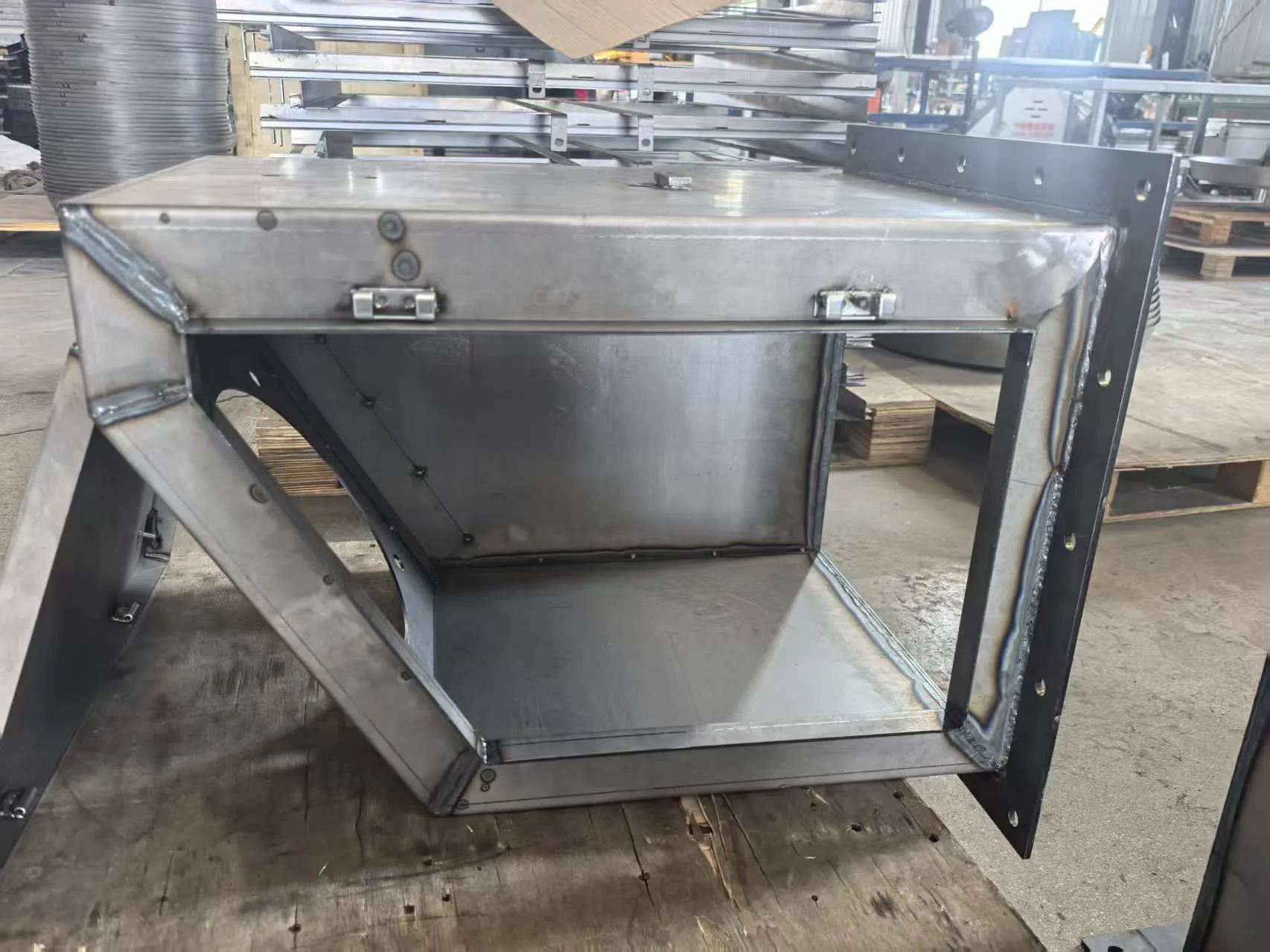

Which Sheet Metal Enclosure Cooling Details Improve Manufacturability?

Translate airflow needs into cuttable, formable details. Define vent shape and spacing with panel thickness, bend lines, and mounting hardware. Keep openings clear of flanges and fasteners, check whether nearby bends could distort narrow vent bridges, and model how a louver or filter frame will be retained and accessed.

Reserve space for wiring bends, connectors, filter access, and airflow around heat sources. Separate inlet and exhaust paths with component placement or internal guides when recirculation is possible. Check panel stiffness around large cutouts and ensure joining features do not obstruct the airflow path.

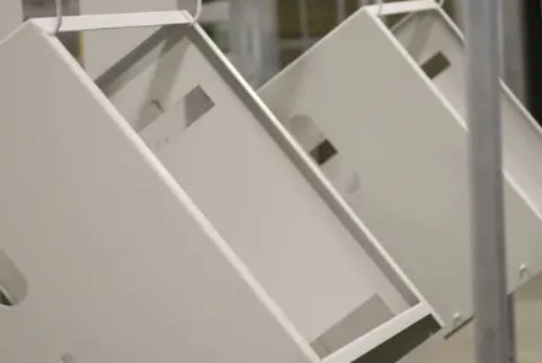

For machined mounting points, coordinate sheet metal work with CNC machining parts. Share material, finish, reference datums, critical dimensions, and which surfaces must align. A coordinated sheet metal fabrication review can identify clashes between vent geometry, bend access, assembly sequence, and finishing before drawings are released.

How Should You Validate the Design Before Production?

Check an assembled enclosure with the intended components, filters, fans, cable entries, and covers. Measure expected hot spots and inlet/outlet temperatures at a defined load and ambient condition. Record orientation and operating state so results can be reproduced after changes.

Before release, review this checklist:

Confirm the heat-load estimate and the permitted temperature rise.

Check that intake and exhaust remain clear after wiring and installation.

Verify fan direction, filter fit, service access, and any alarm or speed-control needs.

Review seams, vents, cable entries, and fasteners against the target ingress requirement.

Confirm cutouts, bends, mounting points, finish, and assembly access on the production drawing.

Repeat the thermal check after changes to component layout, vent area, filter, or finish.

A metal cabinet design review is useful when the external enclosure geometry and internal equipment layout need to be considered together. Set test conditions and measurement locations in advance.

FAQ

These answers cover common design decisions that follow from the airflow and protection trade-offs above.

When Is Natural Convection Enough for an Enclosure?

Natural convection may be sufficient when heat is modest, components are spaced, and a clear low-to-high path is available. Confirm temperatures at the most heat-sensitive components under the highest expected ambient condition.

Where Should Intake and Exhaust Vents Be Placed?

A common starting layout places intake openings low and exhaust openings high. Keep both clear of obstructions and avoid routing warm exhaust back toward the inlet. Component placement can matter as much as the exterior vent location.

Do Vent Openings Cancel an IP-Rated Enclosure?

No single vent feature determines the rating by itself. The opening, filter, louver, gasket, seams, cable entries, and assembly method must be considered together, and the completed enclosure should be evaluated against its required protection level.

Which Materials Work Well for Ventilated Enclosures?

Coated steel can provide rigid industrial panels, while aluminum can reduce weight and spread heat differently. Choose based on structural loads, corrosion exposure, thermal needs, forming constraints, and the specified finish.

What Information Should Be in the First Design Review?

Bring the heat dissipation, ambient range, component layout, target ingress level, enclosure orientation, material, finish, annual quantity, and critical interfaces. Include filter or fan details and identify temperature measurement points.

How Can You Move from Enclosure Design to Production?

A production review needs heat dissipation, ambient range, protection requirement, component layout, vent and filter details, material, finish, dimensions, quantity, and critical tolerances. Include models and drawings, marking interfaces that must align with components or adjacent equipment.
