How to Design Sheet Metal Enclosures for EMI Shielding and Grounding

Interference usually penetrates a sound metal panel at its least expected part. Be it a painted door seal, a poorly connected bolt, an oversized cable hole or a part of a shield which does not quite reach the back of a connector, such interfaces need to be treated in the EMI shielding plan for a sheet metal enclosure as part of the electrical design.

A simple rule to remember is to first define the noise source, the sensitive circuit part, the frequency range of interest and the required attenuation. Then design the enclosure as a single, continuous conductive surface. A fabricated sheet metal enclosure can be designed to meet these requirements. However, the drawings must contain more than just the outer dimensions of the box.

What Does EMI Shielding Mean in a Sheet Metal Enclosure?

EMI shielding reduces the electric or magnetic field that penetrates through to sensitive circuitry within an enclosure. By using the surface of the enclosure as a reflector and also a conductive path around the perimeter of the item within the enclosure, slots, seams and unbonded doors are typically the weakest part of the shielding boundary.

One practical way to express this goal is the shielding effectiveness.

SE = 20 log10(E_without / E_with)

For a 40 dB test target the field at the sensitive circuit has to be 100 times below the unshielded reference. For a 20 dB test target the reduction has to be 10 times. A 60 dB test target requires a reduction of 1,000.

That still needs some context. As a motor drive problem, it is distinct from a low-level sensor problem. Just list the source, victim, frequency, and test case on the review record.

How Should You Choose Metal and Surface Finishes for EMI Shielding?

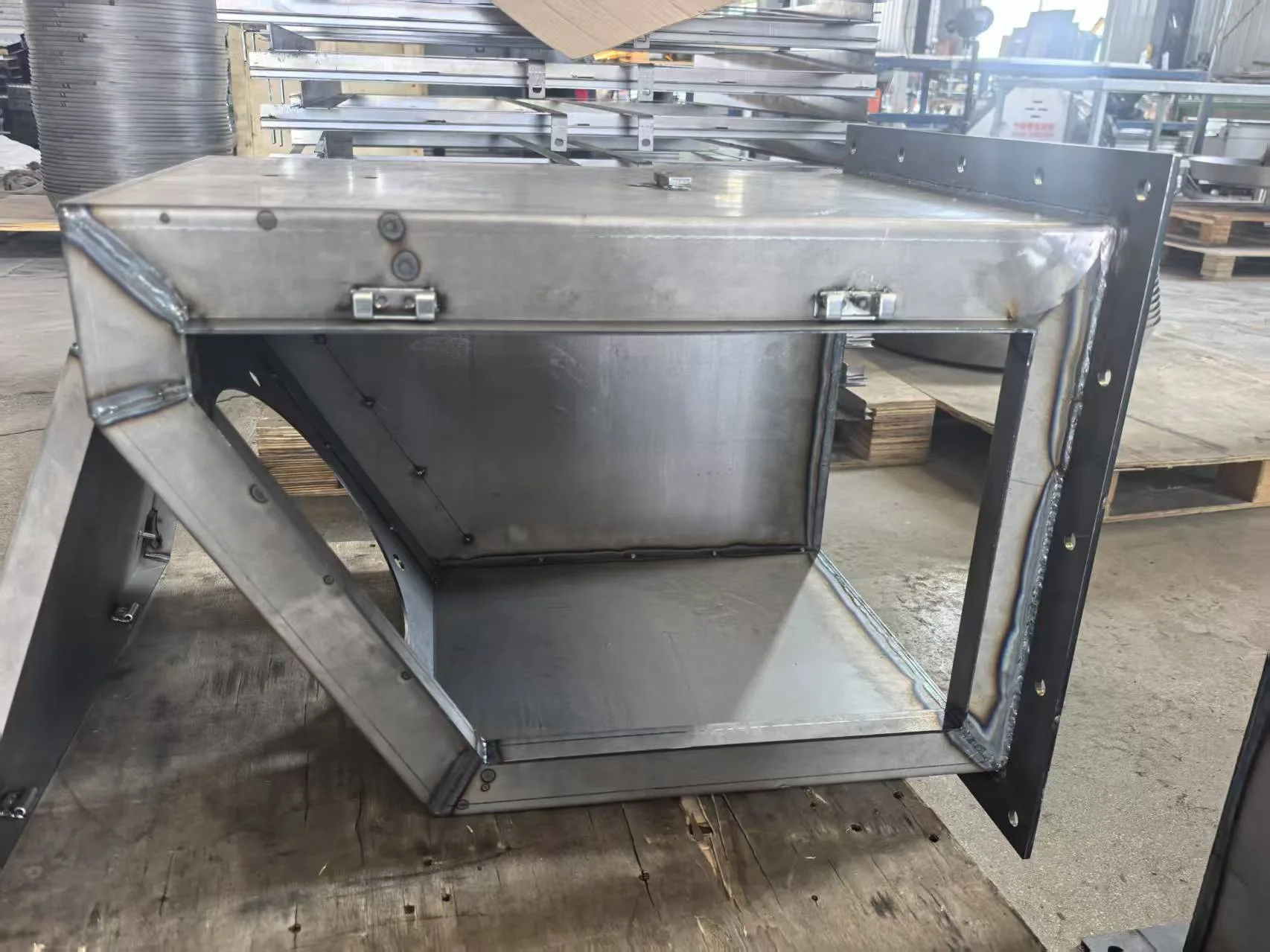

The choice of metal for the walls of an enclosure involves a number of trade-offs. While high conductivity is often important, other considerations such as stiffness, corrosion, weight and jointing, can have a greater impact on the final performance of the cabinet. In many cases a material that can form up well into a clean box with stable joints will give better results than a more conductive material with very poor interfaces.

Compare Steel, Aluminum, and Stainless Steel

In choosing between alternatives for made panels, the scene changes. i.e. a fixed automation cabinet in a dry plant would be made of carbon steel, a mobile test enclosure of aluminum, whilst food and chemical plants would possibly be made of stainless steel. Consider the mechanical loads and the associated electrical connections. The fact that Deshibo Machinery have CNC machining capability to produce parts such as grounding studs or machined connector plates, which can be formed to match up with the associated panels, adds to their suitability.

Use Finishes Without Breaking the Electrical Path

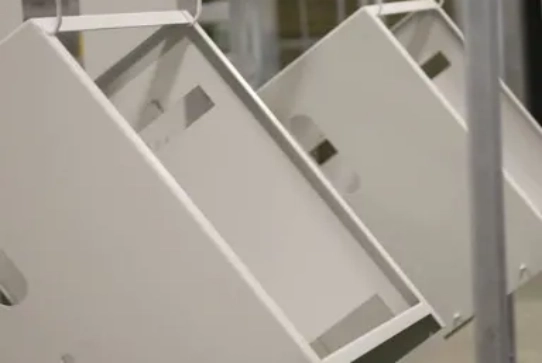

Protect cabinet parts with powder coating or paint, but be aware that these protective surfaces can also insulate panels from each other. Mark the areas to be bonded before finishing. Determine whether a conductive gasket, prepared bare metal, serrated washer, etc. interface is intended for the joint. A hinge does not necessarily create a reliable high frequency path. Define the intended path and verify after coating.

The same rule would apply to fasteners. A tight bolt could still be sitting on an insulating layer. Designers should state the compression zone for gaskets and paint must be kept out of the contact surface.

How Do Seams, Doors, and Cable Entries Affect Enclosure Shielding?

When interfaces between parts of an enclosure extend over longer distances, a seam can behave like a slot. Contact surfaces of doors at corners can lose contact. Cable entries can be sources of noise within an enclosure. Analyzing the boundary as a line rather than a sum of single parts in a metal cabinet design review can be very valuable. A coordinated design review of the electrical installation and the formed parts of the cabinet can be very valuable.

Design the Bonding Path Across Panels and Doors

Make sure each removable panel has a fixed bonding method. Contact should remain constant even under vibration. Attach fasteners in such a way that they also support the seal as opposed to long exposed areas between seal edge and frame surface. If using a conductive gasket, check for correct compression after door, latch and hinge geometry have been fixed.

Consider a plant-floor scene. A variable-frequency drive cabinet sits beside a sensor cabinet. The signal looks clean on the bench, then jumps when the drive accelerates. The cause may be a door seam, a missing gland-plate bond, or a long cable-shield pigtail. Make those paths visible before the cabinet reaches the floor.

Control Cable Openings and High-Frequency Leakage

Treat the cable-entry plate as part of the shield. Try to keep noisy motor cables away from low-level signal cables. Keep the shield terminations as short as possible and as close as possible to the point where cables enter the shield. The use of a filtered connector or a conductive gland will be necessary when a cable crosses a boundary.

How Can You Validate Sheet Metal Enclosure Grounding Before Production?

Validation should match the risk. A simple low-frequency cabinet may need a continuity check. An EMI-sensitive product may need an attenuation test with the real cable set, component layout, door condition, and operating state. Record the fixture and frequency range with the target.

Use this review before releasing the batch:

Identify Noise Source, Sensitive Circuit, Frequency Band of Interest and required attenuation in dB.

Check continuity of all removable parts such as panels, doors, gland plates etc. and their bonding points.

Inspect the prepared contact surfaces after paint or powder coating application.

Check for the correct type of gasket, compression, fastener spacing and latch pressure.

Check the shield termination of cables and separate noisy lines from sensitive ones.

Test with specified cables, filters, loads, and enclosure orientation.

Record result, fixture, ambient test conditions and relevant drawing revision number.

Review custom sheet metal fabrication to tie in electrical acceptance test points with production details. Cabinets that pass empty of content can fail with addition of a filter, cable tray or even painted bracket.

Move from EMI Concept to Manufacturable Enclosure

Create a drawing or 3D model to describe the noise source, the sensitive electronics, the target frequency or range, material, finish, cable-entry points, bonding points, critical dimensions, quantity and expected test results. Include information about the interfaces to doors and panels. This enables the fabricator to check the shield boundary before cutting.

When the design is ready, send the enclosure drawing with those inputs. The review can focus on interfaces, acceptance evidence, and manufacturable details.

FAQ

Is a Thicker Sheet Always Better for EMI Shielding?

No, generally speaking, continuity and interface quality are more important than thickness. A thick panel with an unbonded door or a large opening for cables may well be worse than a thin panel with a good sound boundary. Thickness does, of course, have an effect on stiffness.

Can Powder Coating Block the Grounding Path?

Yes, coating between panels can also form an insulation layer at the joint, even if no special bonding area or conductive interface has been prepared. Mark the contact zones before finishing and check them after assembly.

When Should an Enclosure Use a Conductive Gasket?

A slide-in type door or panel requires a continuous conductive interface across a gap that metal-to-metal contact cannot guarantee to hold reliably. Choose the right type for the gap and frequency range.

Is Aluminum a Good Choice for an EMI-Sensitive Cabinet?

Such a connection can be made, often it must be when low weight is critical. One must design for oxidation, joint stiffness and dissimilar metals. A hinge or even a painted fastener is not a suitable return path.

Do Cable Shields Need to Be Bonded at Both Ends?

The termination strategy will depend on frequency, signal type, grounding strategy and equipment standard. This should be defined as part of the electrical design.
