Battery Cabinet Anti Belt Alarm Storage Safety Cabinet with Hole Fireproof Cabinet
Battery Cabinet Anti Belt Alarm Storage Safety Cabinet with Hole Fireproof Cabinet
Battery Cabinet Anti Belt Alarm Storage Safety Cabinet with Hole Fireproof Cabinet
Battery Cabinet Anti Belt Alarm Storage Safety Cabinet with Hole Fireproof Cabinet
Battery Cabinet Anti Belt Alarm Storage Safety Cabinet with Hole Fireproof Cabinet
Battery Cabinet Anti Belt Alarm Storage Safety Cabinet with Hole Fireproof Cabinet
Battery Cabinet Anti Belt Alarm Storage Safety Cabinet with Hole Fireproof Cabinet
Battery Cabinet Anti Belt Alarm Storage Safety Cabinet with Hole Fireproof Cabinet
Battery Cabinet Anti Belt Alarm Storage Safety Cabinet with Hole Fireproof Cabinet
Description :

Product features:

  1. The cabinet structure complies with EN 14470 – 1 standard with a 90 – minute fire – resistance, effectively protecting against fire hazards both inside and outside the cabinet.
  2. A smoke detection alarm is installed inside the cabinet, which is linked to an LED status indicator or an audible and visual alarm.
  3. The shelves are made of steel and perforated for better heat dissipation and air circulation.
  4. Standard – equipped with PDU industrial sockets, and can be replaced with sockets of different national standards according to customer requirements, such as European – standard sockets, British – standard sockets, etc.
  5. Fire – resistant cable connection ports are provided, and the cable connections inside and outside the cabinet are sealed with fire – resistant mastic.
  6. Operating voltage of the cabinet: AC 220V/50Hz.
  7. Diameter of the exhaust ventilation pipe: 75mm.
  8. National standard cables and installation specifications are adopted to effectively avoid safety hazards caused by circuit fires.



Product Description:

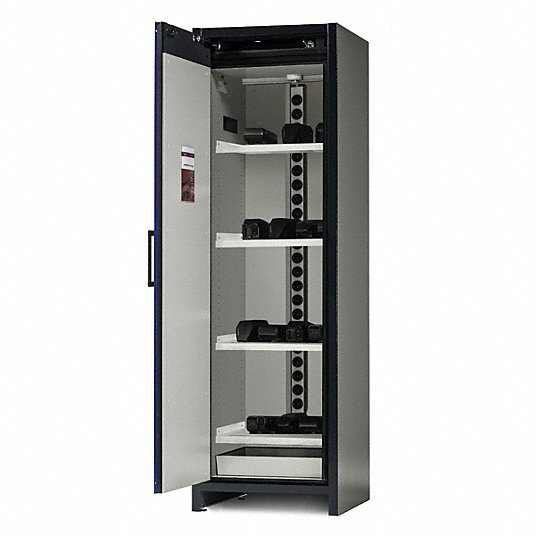

Intelligent Battery Charging Cabinet
This smart charging cabinet is made of thickened plate,leak-proof design,double layer fire protection,
strong bearing capacity,environmental protection spraying, dual lock management suitable for Home Office,
Office Building, Hospital, School, Warehouse, Workshop, Storage & Closet, Garage & Shed, Basement

Model NO. DSBBC16
Certification ISO9001:2000, CE
Form Partly-welded Type
Operation Voltage Low Voltage
Size 600*520*1700mm or others size
Application Range Home and Business
Shell Protection Grade IP55
Brand DSB
Material Galavanized Steel
Surface Treatment Power Coating
Features Fireproof, Explosion-Proof, Theft Resistance
Smoke Sensor Yes
Temperature Realtime Display
Timed Charging Yes
Alarm Yes
Fire Extinguisher 30g*4
Screen Smart Touch
Lock Type Hybrid Lock
Protection Short Circuit & Overload & Leakage
Application Indoor
Feet Adjustable
Name Intelligent Battery Storage and Charging Cabinet
Transport Package Cartons+Pallet
Specification H1700× W600× D520mm
Origin Yantai, Shandong Province, China
HS Code 85381090
Production Capacity 10000pieces/Year

Package and Delivery:

Package Size 60.00cm * 57.00cm * 137.00cm
Package Gross Weight 97.000kg

  1. Automatic Fire Suppression System

    • Equipped with a temperature-sensing automatic fire extinguishing device for rapid fire suppression.

  2. Multi-Environment Monitoring

    • Includes smoke detection, temperature, and humidity alarms for real-time environmental monitoring.

  3. Explosion-Proof Electrical Design

    • Standard PDU industrial sockets and explosion-proof piping to prevent electrical fires.

    • Fireproof cement seals on cable joints for enhanced safety.
